Fujitsu Lifestyle Range ASTG12KMTC

Indoor unit: ASTG12KMTC

Outdoor unit: AOTG12KMTC

Operation Type: Reverse Cycle

Power Source V/Ph/Hz: 230 / 1 / 50

Cooling Capacity kW (Rated (Min - Max)): 3.50 (0.8 - 4.1)

Heating Capacity kW (Rated (Min - Max)): 3.70 (0.9 - 6.1)

Input Power Cooling kW (Rated (Min - Max)): 0.89 (0.15 - 1.29)

Input Power Heating kW (Rated (Min - Max)): 0.79 (0.25 - 1.89)

EER Cooling kW/kW: 3.93

COP Heating kW/kW: 4.68

Star Rating Cooling (0-10) (Hot / Average / Cold): 4.5 / 4.5 / 5

Star Rating Heating (0-10) (Hot / Average / Cold): 3.5 / 3 / 2.5

Total Cooling Seasonal Performance Factor Residential kW (Hot / Average / Cold): 6.477 / 6.193 / 6.625

Heating Seasonal Performance Factor Residential kW (Hot / Average / Cold): 5.241 / 4.817 / 4.278

Total Cooling Seasonal Performance Factor Commercial kW (Hot / Average / Cold): 7.443 / 8.666 / 10.522

Heating Seasonal Performance Factor Commercial kW (Hot / Average / Cold): 5.234 / 4.971 / 4.518

Running Current amps (Cooling / Heating): 4.2 / 4

Moisture Removal l/hr: 1

Indoor Sound Pressure Cooling dBA (High / Quiet): 40 / 19

Indoor Sound Pressure Heating dBA (High / Quiet): 42 / 21

Outdoor Sound Pressure dBA (Cooling / Heating): 49 / 49

Outdoor Sound Power dBA: 59

Air Circulation (Indoor - High Fan) Cooling l/sec: 194

Air Circulation (Indoor - High Fan) Heating l/sec: 214

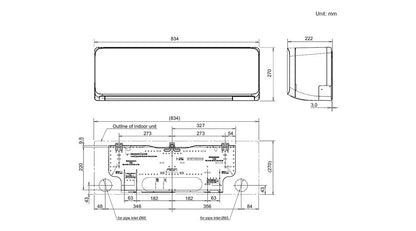

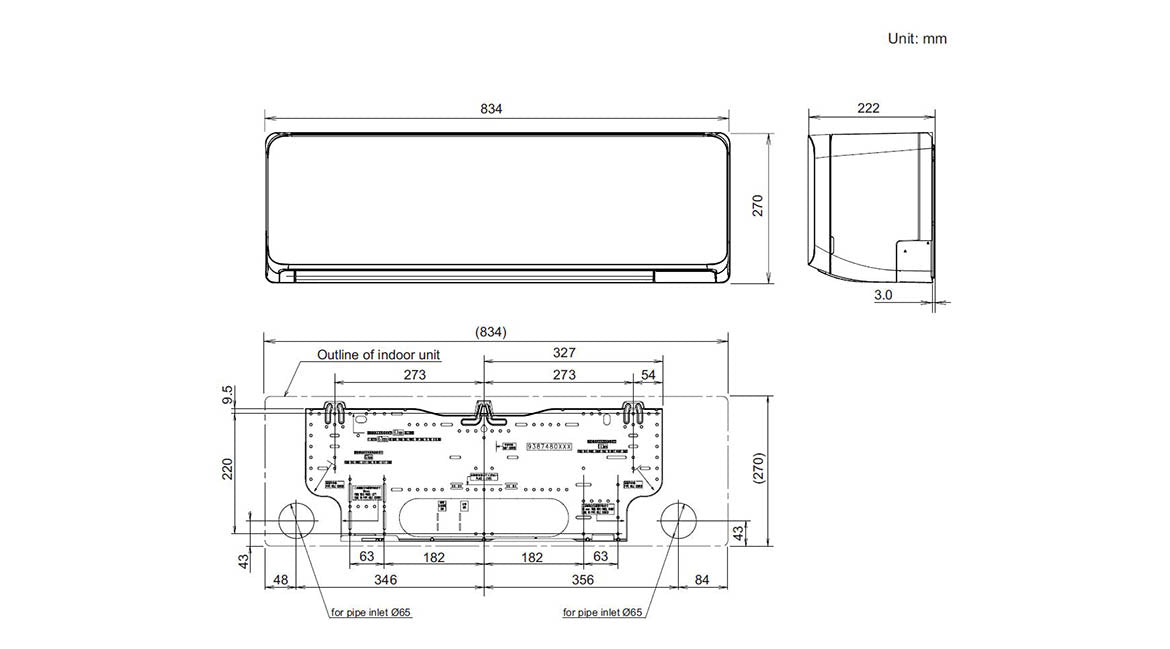

Indoor Unit Dimensions mm (Height x Width x Depth): 270 x 834 x 222

Indoor Unit Weight kg: 10.00

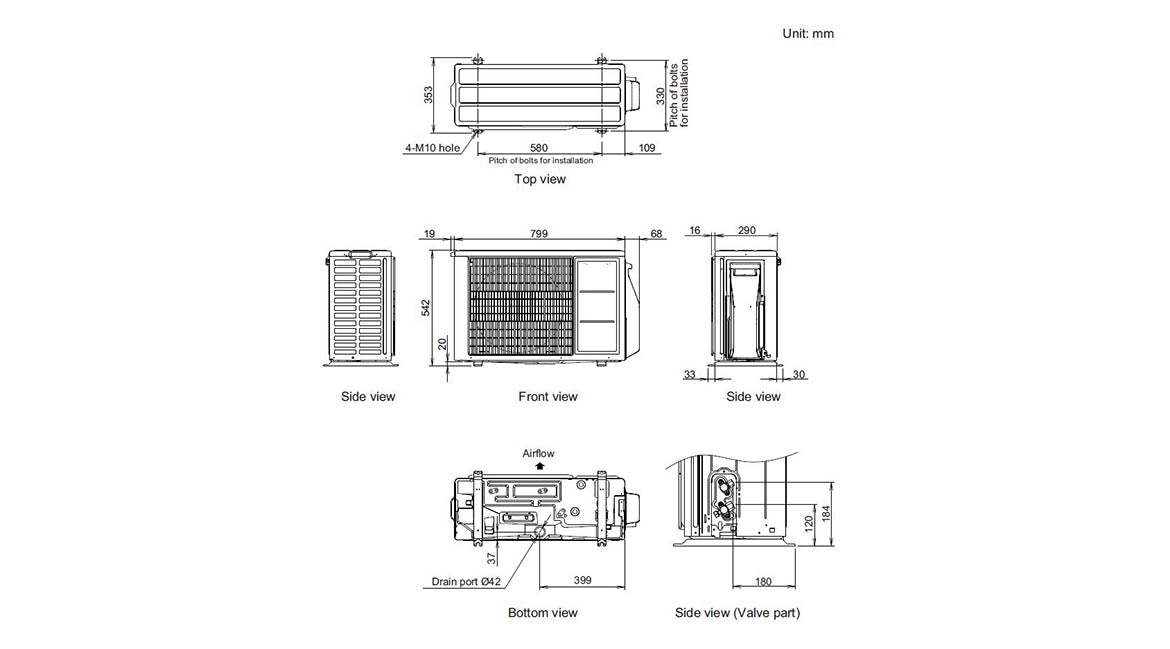

Outdoor Unit Dimensions mm (Height x Width x Depth): 542 x 799 x 290

Outdoor Unit Weight kg: 32.00

Piping Connects mm Ø (Liquid / Gas): 6.35 / 9.52

Pipe Length m (Max (Precharged)): 20 (15)

Max Height Difference m: 15

Operation Range Cooling °CDB (Min to Max): -10 to 46

Operation Range Heating °CDB (Min to Max): -15 to 24

Refrigerant Type: R32

Refrigerant Amount g: 850

All DC-With All DC, electricity loss is decreased and power consumption reduced

Apple-Catechin Filter- Fine dust, invisible mould spores and harmful microorganisms are absorbed onto the filter by static electricity and further growth is inhibited and deactivated by the polyphenol ingredient extracted from apples.

Auto Restart-Should there be a temporary loss of power, the unit will automatically restart itself in the same operating mode, once the power is restored

Auto Shut Louvre- The auto shut louvres close or open automatically when the unit stops or starts.

Auto Changeover- The unit automatically switches between operating modes based on the temperature setting and room temperature.

Automatic Air Flow Adjustment- The micro-processor automatically adjusts the air flow to follow changes in room temperature.

Automatic Louvre- The position of the louvres is set automatically to match the operating mode. It is also possible to adjust the louvres using the remote control.

Auto-Off Timer- Automatically stops the units operation when a fixed time has elapsed from the start of operation.

Blue Fin Heat Exchanger- Corrosion-resistance of the heat exchanger in coastal areas has been improved by blue fin treatment of the outdoor unit heat exchanger.

Demand Response- This product is designed to be compatible with Air Conditioning Demand Response program. When your electricity supplier activates one of the three modes the air conditioner switches over to the appropriate operation.

Economy Mode- Limits the maximum operation current, and performs operation with the power consumption suppressed.

Filter Sign- Human sensor detects movement of people within the conditioned room.

Human Sensor- i-PAM inverter technology enables high output and high efficiency performance.

i-PAM- i-PAM inverter technology enables high output and high efficiency performance.

Long-Life Ion Deodorisation Filter- The filter deodorises by powerfully decomposing absorbed odours using the oxidising and reducing effects of ion generated by the ultra-fine particle ceramic.

Low Noise Mode- The compressor speed and the outdoor unit fan speed are limited to reduce the operational noise.

On-Off Timer- ON-OFF timer can be set to operate once every 24 hours.

Powerful Mode- Powerful mode will operate the indoor unit fan and outdoor unit compressor at maximum operation to quickly make the room conditioned and comfortable.

Program Timer- This timer allows selection of one of four options. ON, OFF, ON ––> OFF, or OFF ––> ON.

Sleep Timer- The micro-processor gradually changes the room temperature, allowing you to sleep comfortably at night.

Super Quiet Mode- The indoor units fan can operate at a low speed to produce quieter operation.

Up/Down Swing Louvre- The up/down louvre automatically swings up and down.

V-PAM- v-PAM inverter technology increases the maximum output of the compressor significantly and enables high power and high efficiency.

Washable Panel- Dust that accumulates on the air conditioner can be easily cleaned with a damp cloth.

Weekly Timer- Different ON-OFF times can be set for up to 7 days.

10°C Heat Operation- The room temperature can be set to go no lower than 10°C, thus ensuring that the room does not get too cold when not occupied.
