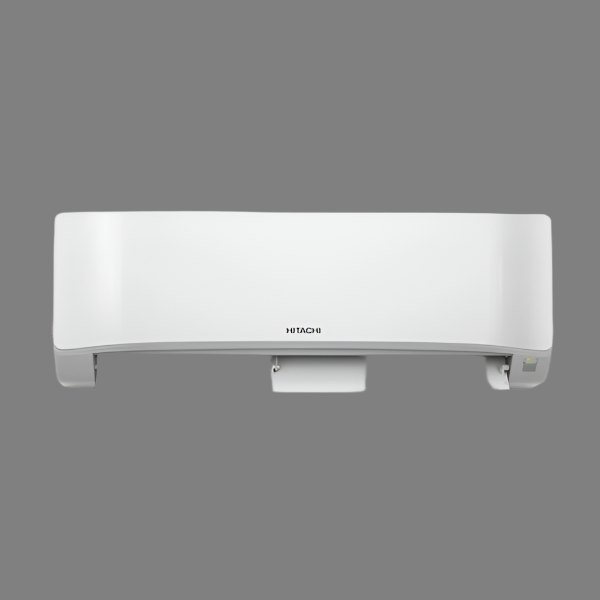

Hitachi RAK-DJ70PHAT (7.0kW)

Model: RAK-DJ70PHAT
Capacity: 7.0kW
Indoor Unit: RAK-DJ70PHAT
Outdoor Unit: RAC-DJ70PHAT
Rated Capacity Cooling: kW (Rated (Min – Max)) 7.0 (2.5 – 8.0)
Heating Capacity: kW (Rated (Min – Max)) 8.0 (1.8 – 8.8)
Rated Cooling Power Input (Min. – Max.): kW 2.16 (0.5 ~ 3.50)
Rated Heating Power Input (Min. – Max.): kW 2.15 (0.5 ~ 3.50)
Dehumidification: l / h 4.8
cooling 3.5
Hot Zone heating 4.0
Mixed Zone cooling 3.5
Zone Energy Efficiency heating 2.5
Star Rating Cold Zone cooling
heating 4.0
2.0
AEER 3.23
ACOP 3.71
Power Supply V / Phase / Hz
Rated Running Current (cooling/heating) Amps 9.53 / 9.49
Maximum Current Amps 15.00
Interconnecting Wire Power supply To
Operation Range Cooling °C
Heating °C
Compressor Type 2 Cylinder Rotary
Diameter of Pipes Liquid / Gas mm 6.35 / 15.8
Type R32
Refrigerant Factory pre-charged length m 30
Min. / Max. h/ Lift m 3 / 30 / 20
Dimensions (WxHxD) mm 1050 × 294 × 250
Weight kg 12.2
Fan Speeds
Indoor Unit
Air Flow (cooling) l / s 316/281/235/171/138
Air Flow (heating) l / s 318/285/240/180/140
Noise (cooling) dB(A) 48/45/42/36/32
Dimensions (WxHxD) mm 850 × 800 × 298
Outdoor Unit
Weight kg 49.0
Sound Power dB(A) 65
Sound Pressure dB(A) 54/55

Hitachi AirHome 400: Your Smart Home Comfort Companion

Experience the future of air conditioning with the Hitachi AirHome 400. This innovative system is designed to provide optimal comfort and energy efficiency.

Key Features:

Smart Sensors: Automatically adjusts settings based on occupancy and activity levels.

Energy-Efficient Cooling: Reduces energy consumption without compromising comfort.

Advanced Air Purification: Removes dust, mold, and bacteria for cleaner air.

Quiet Operation: Enjoy a peaceful environment.

Easy-to-Use Controls: Intuitive controls for convenient operation.

Upgrade your home with the Hitachi AirHome 400 and enjoy a healthier, more comfortable living space.
