Kelvinator Split System KSD71HWJ (7.1kW)

Specifications for KSD71HWJ - 7.1kW Reverse Cycle Air Conditioner

• Type: Reverse Cycle (Heating & Cooling)
• Domestic Warranty: 5 years

Key Features

• Remote Control: Yes, with LCD and back-lit display
• Manual Operation: Yes
• Air Swing (Auto Up/Down): Yes
• Auto Restart: Yes
• Fan Mode: Yes
• Auto Mode: Yes
• Air Direction Control: Yes
• Cooling Mode: Yes
• Dry Mode: Yes
• Self Diagnosis: Yes
• Room Temperature Display: Yes
• Heating Mode: Yes
• Low Pressure Detection: Yes
• Demand-Response Enabled: Yes
• Anti-Cold Air Function: Yes
• Follow Me Function: Yes
• Silence Mode: Yes
• Sleep Mode: Yes
• Turbo Mode: Yes
• Wireless Enabled: Yes

Filtration

• Dust Filter: Yes
• HEPA Filter: Yes
• Ion Filter: Yes

Performance Specifications

• Cooling Capacity: 7100 watts
• Heating Capacity: 8000 watts
• Current Rating: 17.5 amps
• Indoor Sound Pressure (High Setting): 52 dBA
• Indoor Sound Pressure (Low Setting): 34 dBA
• Outdoor Sound Pressure: 60 dBA
• Outdoor Sound Power: 67 dBA
• Indoor Air Circulation (Max): 378 ltr/s
• Ambient Temperature Range (Min): -15°C
• Ambient Temperature Range (Max): 50°C
• Moisture Removal: 2.8 ltr/hour
• Energy Star Rating (Cooling): 2.5
• Energy Star Rating (Heating): 3.0
• Heating COP: 3.75
• Refrigerant Weight: 1300g
• Refrigerant Type: R32

Unit Dimensions

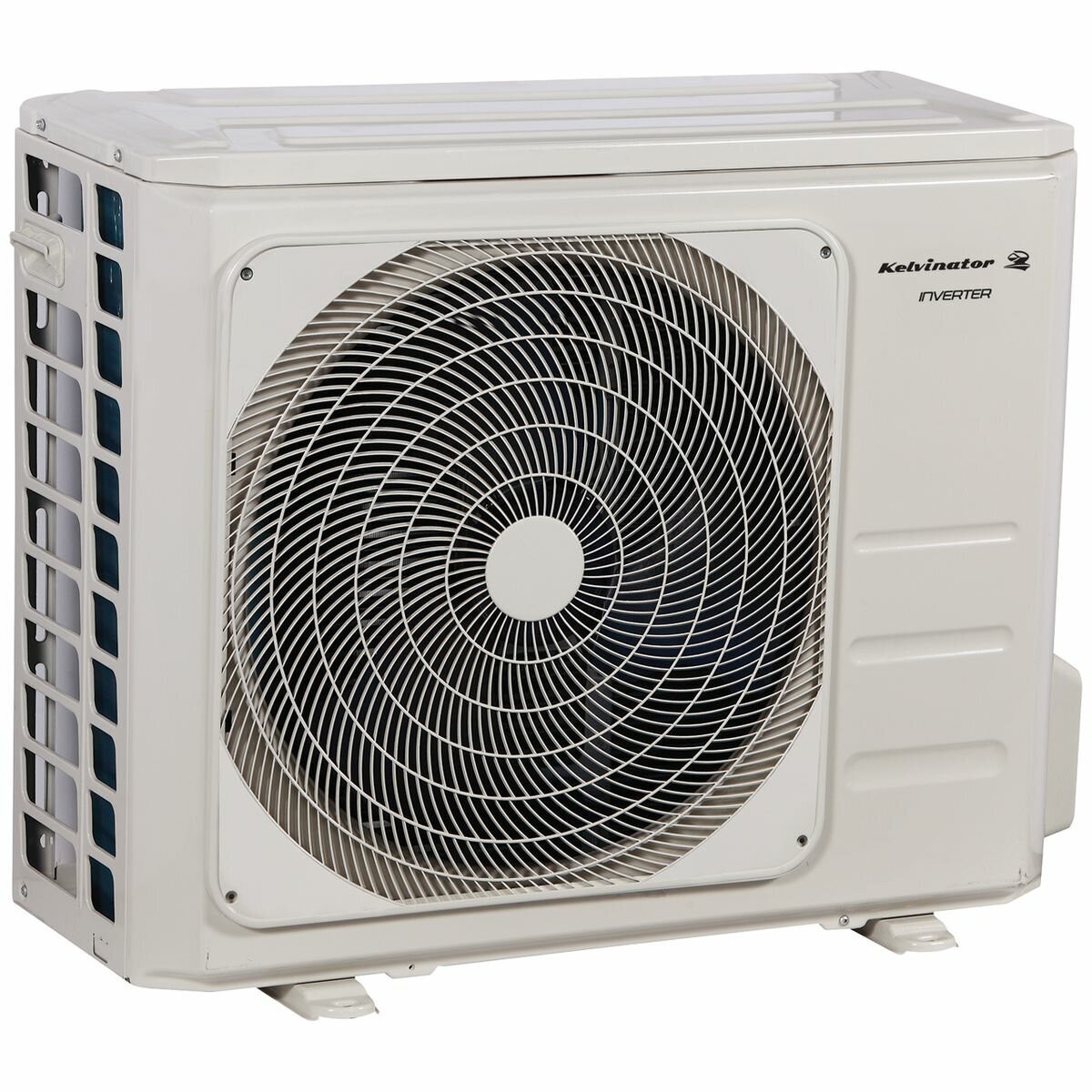

• Outdoor Unit Dimensions:

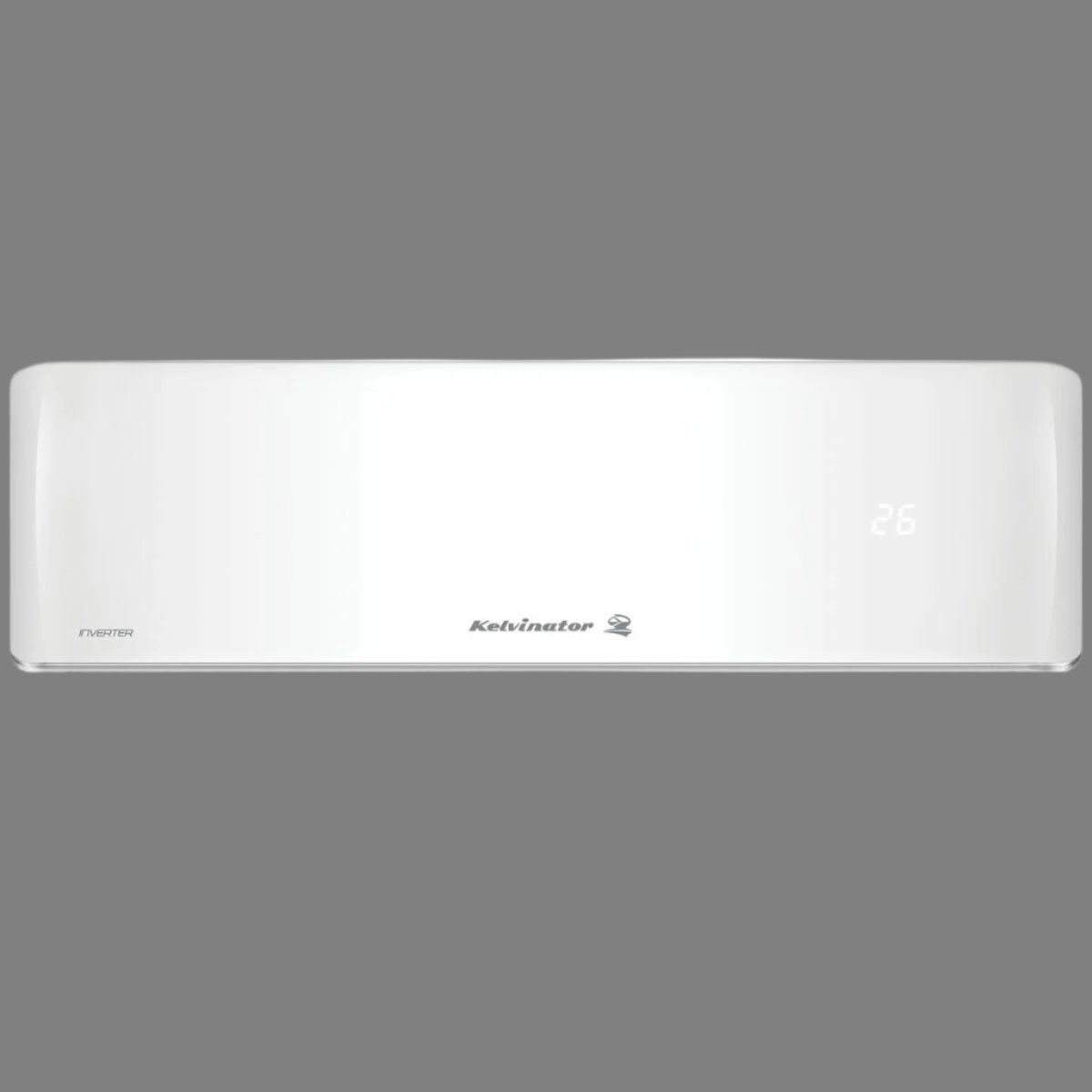

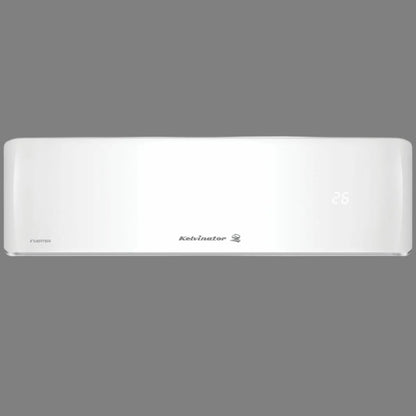

• Indoor Unit Dimensions:

Installation Requirements

• Gas Pipe Size: 15.9 mm
• Liquid Pipe Size: 9.52 mm
• Additional Refrigerant Required (Supplied Charge Length): 24 g/m
• Wires Connecting Indoor Unit to Outdoor Unit: 4
• Maximum Piping Length (Vertical): 25 meters
• Maximum Piping Length: 50 meters
• Maximum Pipe Length with Supplied Charge: 5 meters

Key Features of KSD71HWJ - 7.1kW Reverse Cycle Air Conditioner:

Heating and Cooling Modes of Operation: Provides both heating and cooling for year-round comfort.

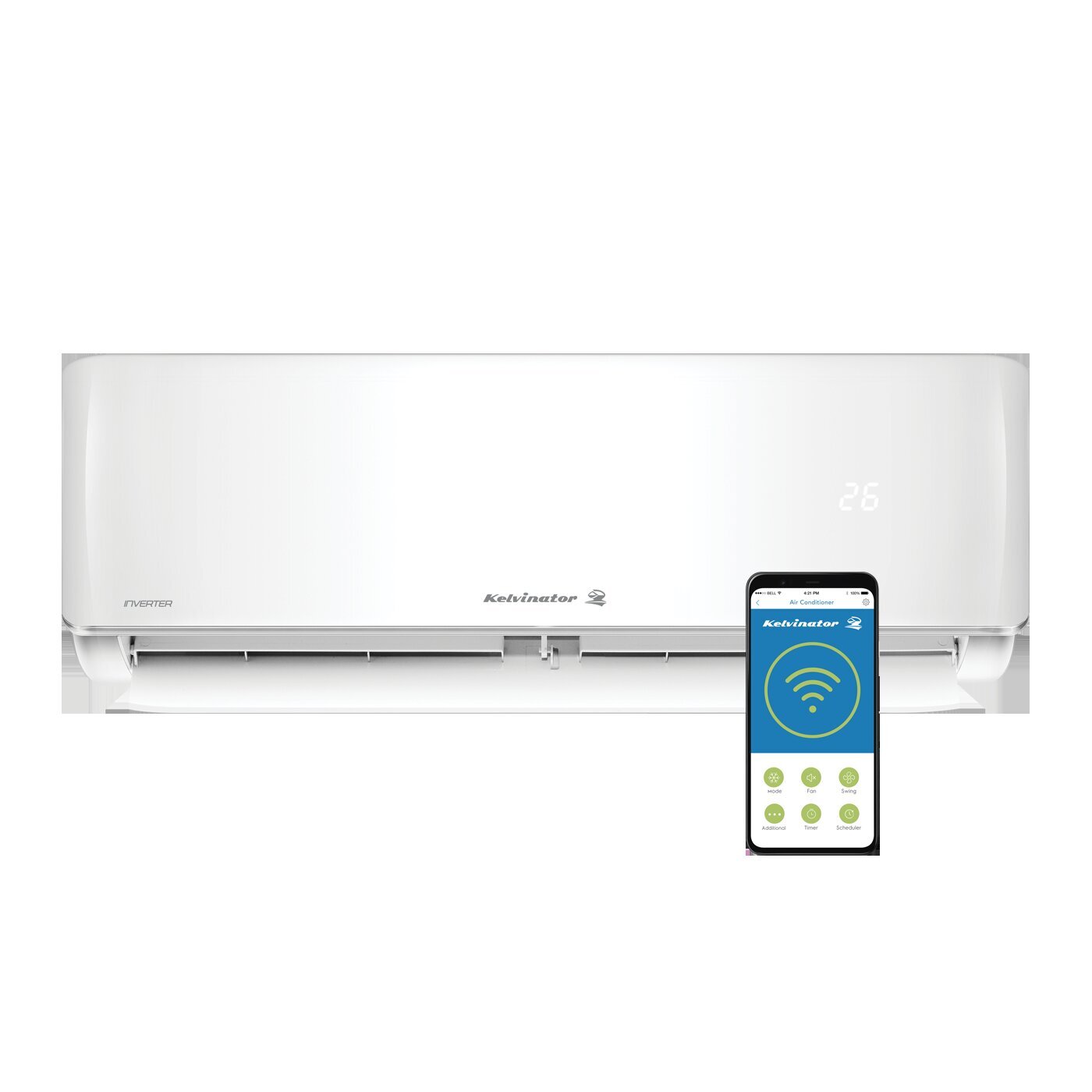

Kelvinator Connect: Smart connectivity for remote control and monitoring.

Auto or Manual Operation: Choose between automatic adjustments or manual control for customized comfort.

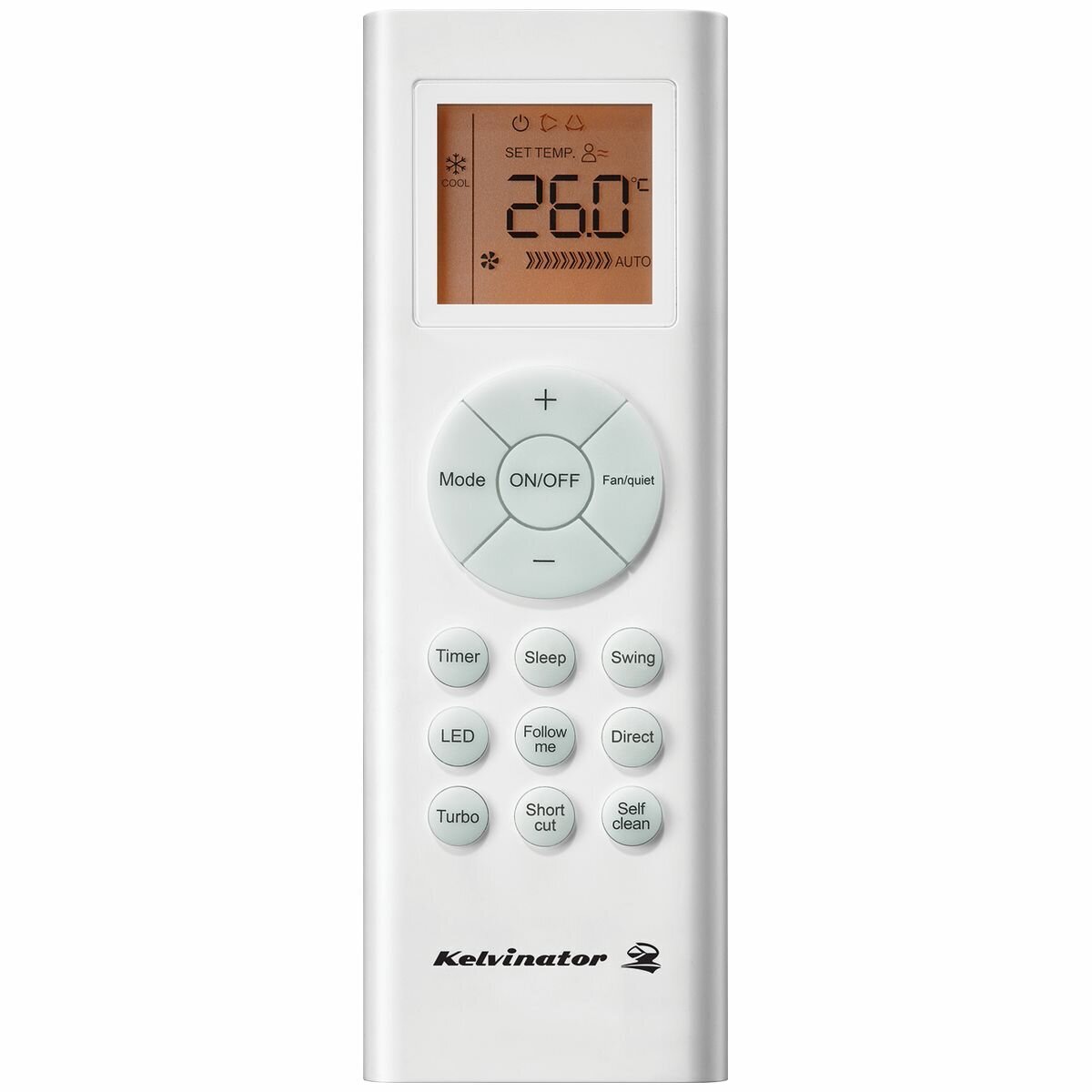

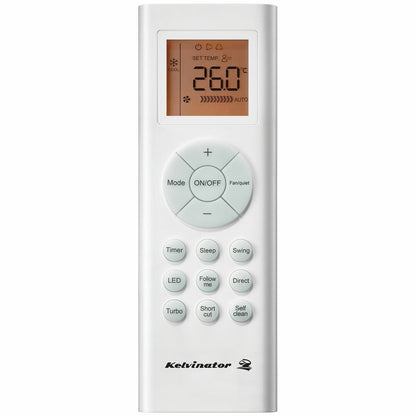

LCD Backlit Wireless Remote Control: Easy-to-use remote with a clear, illuminated display.

Follow Me Command: Ensures optimal room temperature by sensing the temperature at the remote's location.

24-Hour Timer: Set the air conditioner to automatically turn on or off at any time within a 24-hour period.

Auto Restart: Automatically restarts the unit with previous settings after a power interruption.

Inverter Compressor Technology: Provides more energy-efficient and quieter operation by adjusting compressor speed.

Auto Air Swing: Ensures even airflow distribution for consistent cooling or heating.

Sleep Mode: Adjusts the temperature for a more comfortable sleeping environment.

5-Year Parts and Labour Warranty: Provides peace of mind with an extensive warranty.
