Panasonic S/U-50PY3E/R5

• Cooling Capacity: 5.0 kW (1.5 – 6.4 kW), Heating Capacity: 5.0 kW (1.5 – 6.4 kW)
• Cooling Capacity: 17,100 BTU/h (5,100 – 21,800 BTU/h), Heating Capacity: 17,100 BTU/h (5,100 – 21,800 BTU/h)
• EER: 3.50, COP: 3.94
• Power Input (min – max): Cooling: 1.43 kW (0.27 – 2.20), Heating: 1.27 kW (0.27 – 2.20)

Indoor Unit

• Power Source: 1 Phase / 50 Hz, Voltage: 230V / 240V
• Current: Cooling: 6.35 A, Heating: 5.70 A / 6.10 A, 5.45 A
• Dimensions (H x W x D): 243 mm x 575 mm x 575 mm
• Net Weight: 15 kg
• Air Volume: Cooling / Heating: 200 L/s
• Sound Pressure Level (H/M/L): Cooling / Heating: 39/34/27 dB(A)
• Sound Power Level (H/M/L): Cooling / Heating: 54/49/42 dB(A)

Outdoor Unit

• Power Source: 1 Phase / 50 Hz, Voltage: 230V / 240V
• Dimensions (H x W x D): 619 mm x 824 mm x 299 mm
• Net Weight: 35 kg
• Piping Connections: Liquid: Ø6.35 mm, Gas: Ø12.7 mm
• Pipe Length: 3 m – 20 m
• Elevation Difference: 15 m
• Operating Range: Cooling: -10 to 46°C, Heating: -15 to +24°C

4o mini

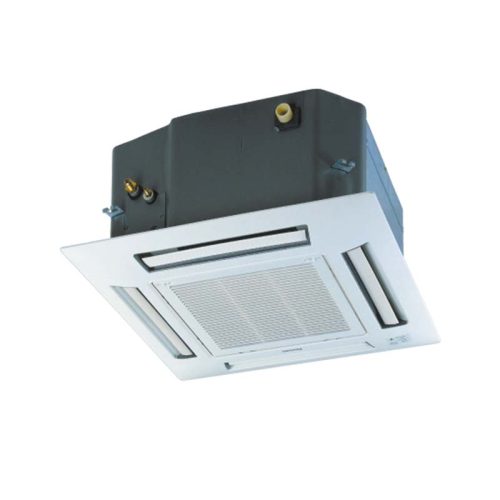

Panasonic S-50PY3E / U-50PZ3R5 5.0kW 4-Way Mini Cassette | NanoeX

Controller: CZ-RTC5B

Redesigned for a lower vertical profile, it fits easily into a standard 60 x 60cm ceiling grid without the need to alter bar configuration. This makes the Low Profile Mini Cassette ideal for small commercial and retrofit applications, in particular those with lower ceilings.

• Market-leading energy efficiency
• Compact design (230mm High)
• Easy installation
• Built-in drain pump
• Mini cassette fits into a 600 x 600mm ceiling grid
• Powerful drain pump gives 850mm lift
• DC fan motor with variable speed and a new heat exchanger ensures efficient power consumption
• Multi-directional air flow
