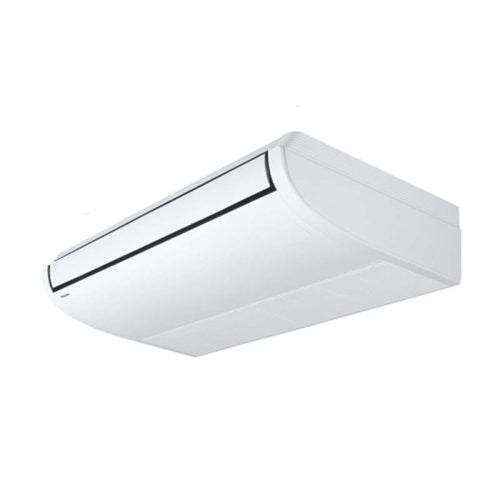

Panasonic S/U-60PT3E/R5

60PZ3R5 (Outdoor Unit):

• Cooling Capacity: 6.0 kW (2.0 – 7.1)
• Heating Capacity: 6.0 kW (1.8 – 7.0)
• Cooling BTU/h: 20,500 (6,800 – 24,200)
• Heating BTU/h: 20,500 (6,100 – 23,900)
• EER: 3.82
• COP: 4.41
• COP@H2 Condition: 3.19
• Power Input (Cooling): 1.57 kW
• Power Input (Heating): 1.36 kW

TCSPF / HSPF:

• Residential (Hot Climate): 5.18 / 5.97
• Residential (Average Climate): 4.54 / 4.88
• Residential (Cold Climate): 4.61 / 4.12
• Commercial (Hot Climate): 5.63 / 6.03
• Commercial (Average Climate): 5.63 / 5.40
• Commercial (Cold Climate): 5.98 / 4.66

Indoor Unit:

• Power Source: 1 Phase / 50Hz, 230V | 240V
• Dimensions (H x W x D): 235 x 1,275 x 690 mm
• Net Weight: 34 kg
• Air Volume (Cooling / Heating): 334 / 283 / 242 L/s
• Sound Pressure Level (Cooling / Heating): 38 / 34 / 29 dB(A)
• Sound Power Level (Cooling / Heating): 56 / 52 / 47 dB
• Fan Speeds: 5
• Drain Piping: VP-20 mm

Outdoor Unit:

• Power Source: 1 Phase / 50Hz, 230V | 240V
• Current (Cooling / Heating): 7.20 / 6.05 A | 6.90 / 5.80 A
• Dimensions (H x W x D): 695 x 875 x 320 mm
• Net Weight: 43 kg
• Air Volume (Cooling / Heating): 701 L/s
• Sound Pressure Level (Silent Mode, Cooling / Heating): 48 (46) / 49 (47) dB(A)
• Sound Power Level (Silent Mode, Cooling / Heating): 66 (64) / 67 (65) dB
• Piping Connections (Liquid / Gas): Ø6.35 / Ø12.7 mm
• Pipe Length Range: 3 – 40 m
• Elevation Difference: 15 m (OU lower) / 30 m (OU higher)
• Maximum Chargeless Length: 30 m
• Refrigerant: R32, 1,130 g (Additional gas: 15 g/m)
• Operating Range (Cooling): -10 to 46 °C
• Operating Range (Heating): -15 to 24 °C

6.0 kW Cooling
6.0 kW Heating

R32 Compact | NanoeX6.0 kW Cooling
6.0 kW Heating

R32 Compact | NanoeX
